Traffic Analysis: Before/After Exploitation in Kioptrix (Wireshark) – 7 Shocking Packets I Missed Before My First Shell

Wireshark Methodology

From False Flags to Proof:
Traffic Analysis & The Shell

Forty-seven minutes. That’s how long I once celebrated a “successful” Kioptrix exploit before realizing my capture was on the wrong interface. Keep guessing, and you don’t just lose a shell—you lose repeatability.

Stop the modern mess of VM NIC modes and noisy streams. My method isolates attacker↔target, marks the flip, and verifies control. Use the 7 packets that matter and filters like tcp.flags.syn to point to the exact stream where control begins.

The Analysis Map

STEP 01

Spot the “truthful” interface in 2 minutes

STEP 02

Lock a baseline with SYN scan + one clean banner

STEP 03

Identify delivery by size & behavior spikes

STEP 04

Find the shell stream with tcp.stream and cadence

STEP 05

Capture the quiet post-shell packet you always miss

What changes before and after exploitation

Before exploitation, your traffic is mostly questions: “Who are you?” “What ports are open?” “What service is that?” After exploitation, it becomes proof: a new TCP session, a weird response size pattern, a callback, interactive keystrokes, or a sudden shift in directionality.

In Kioptrix, the “before” phase often looks clean and polite (scan, connect, banner). The “after” phase looks slightly messy—like someone started moving furniture at 2 a.m. That mess is your friend.

Two operator truths:

• Most first-time failures aren’t exploit failures. They’re capture lies (wrong interface, wrong VM NIC mode, wrong host-only subnet).
• Most first-time successes feel lucky because you didn’t mark the exact packet where the story flipped.

Capture setup that doesn’t lie

If you only read one section, read this one. A perfect analysis on a bad capture is just confident fiction.

Pick the right capture point

• Inside the attacker VM (easiest): capture on the VM’s active interface. You’ll see exactly what your tools emit.
• On the host (richer): you might see bridged traffic, ARP, and other VM noise—great for diagnosing NIC mode issues.
• On a virtual switch / mirror (advanced): helpful when you want both sides, but it’s extra moving parts.

Two quick sanity checks (takes 2 minutes)

Check 1: Can you see your own ARP or ICMP?

• Ping the target once. You should see ICMP Echo or at least ARP.
• If you see nothing, you’re on the wrong interface or the traffic isn’t leaving the VM.

Check 2: Is your VM NIC mode what you think it is?

• NAT is fine for internet access, but it can confuse “lab-to-lab” visibility.
• Host-only is predictable for training labs, but you must confirm both VMs share the same subnet. If you keep mixing modes, use this as your baseline reference: VirtualBox NAT vs Host-Only vs Bridged.
• Bridged can work, but it’s easy to accidentally capture your entire household network and drown.

Show me the nerdy details

Methodology: do a 10-second “known traffic” test (one ping + one TCP connect) before you do any real scanning. If that traffic isn’t visible, stop. Fix capture point/interface first. This saves 20–40 minutes of troubleshooting later because you won’t be debugging ghosts.

If you’re swapping hypervisors while you troubleshoot, keep your assumptions honest with a quick compare: VMware Player vs Workstation vs Fusion (and why the “same” NIC mode can behave differently).

Small humor, true pain: “Wireshark says nothing happened” is rarely true. It’s usually saying, “You’re watching the wrong window.”

Packet 1: the quiet DNS/ARP tell

This is the packet you ignore because it feels boring. And then you spend an hour blaming Nmap. Packet 1 is “the lab is reachable.”

What you’re looking for

• ARP who-has from attacker asking for the target MAC (local subnet)
• ARP is-at reply from target
• If you’re using names, you might see DNS queries (less common in simple Kioptrix runs)

Why it matters: If ARP doesn’t resolve on a host-only network, nothing else will be trustworthy. You can still get partial results (cached entries, weird routing), but your “before/after” comparison becomes mush.

Numbers you can actually use: spend 30 seconds here and save 20 minutes later. If ARP is silent, don’t proceed.

• Wireshark filter: arp
• Fast confirm: look for a pair: request + response within 1–2 seconds

Packet 2: the SYN scan that sets your baseline

Packet 2 is the heartbeat of “before.” A SYN scan gives you a baseline map: which ports respond, how quickly, and with what flags.

What “healthy scanning” looks like

• Attacker sends SYN
• Target replies SYN, ACK on open ports
• Target replies RST on closed ports (often)
• Silence on filtered ports (depends on network)

Why it matters: Exploitation is easier when you have a clean “before” snapshot. If you later see a new TCP session on an odd port, you’ll know it’s new—because you already measured what existed.

Mini practice: pick one port you believe is open. Follow that stream later and compare: “before banner” vs “after payload.” That’s the whole game.

Show me the nerdy details

Tip: focus on timing and resets. A target that responds instantly during scan but stalls during exploit often indicates application-layer behavior (web/app) rather than network connectivity. That distinction keeps your troubleshooting clean: app problem vs network problem.

If your scan baseline keeps “lying,” it’s usually not Nmap—it’s workflow drift. Tighten the routine here: how to use Nmap in Kali Linux for Kioptrix, then steal a few easy-to-miss Nmap flags so your “before” phase is actually repeatable.

Packet 3: the service banner you thought you saw

This is where people get overconfident. They see “Apache” and their brain goes, “Cool, exploit time.” But Packet 3 is more subtle: it’s the exact bytes that prove service identity and version behavior.

What to capture

• HTTP request + response headers
• SSH handshake lines (if present)
• FTP or other plaintext greetings (if present)

Operator trick: Don’t just read the banner. Watch the server’s response pattern:

• Do you get a clean 200/301/403?
• Do you get an error that reveals a module path?
• Do you see long responses that suggest directory listing or verbose error pages?

Two numbers that matter:

• Capture at least 1 full request/response before exploitation.
• Note the response size difference if the exploit changes behavior (even a jump from 800 bytes to 8 KB can be a clue).

If you’re doing CVE-driven thinking (and Kioptrix practically begs you to), keep the “banner → likely stack → exploit surface” bridge clean with Apache/MySQL/PHP CVE mapping and a quick refresher on vulnerable web app structure.

Packet 4: the exploit delivery moment

This is the first “shocking” packet because it often doesn’t look like a movie. It looks like a normal request… until it doesn’t.

What Packet 4 often is in practice

• An HTTP request with an unusually long parameter
• A suspicious header value
• A request that triggers a server error followed by a new connection

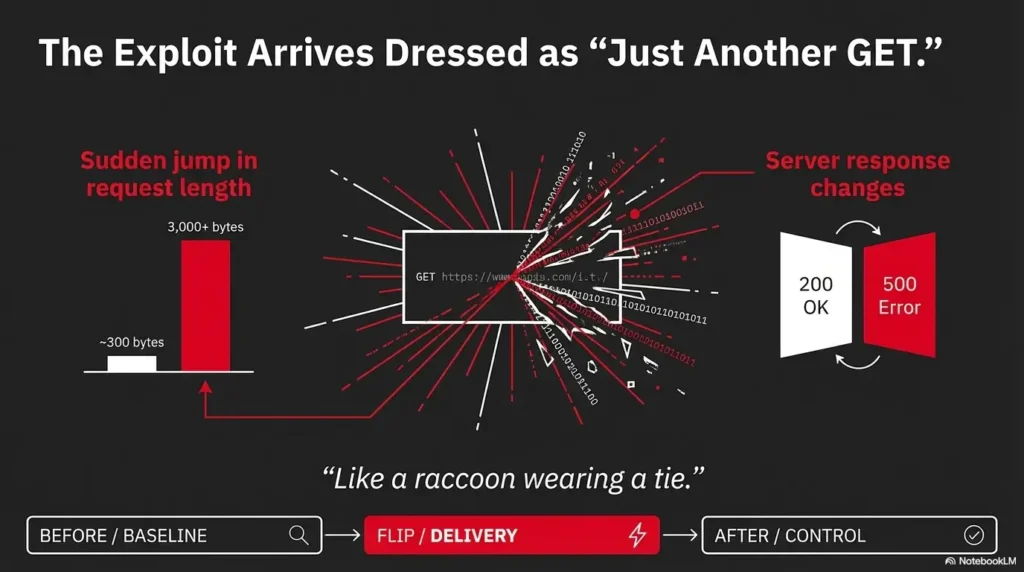

What to look for in Wireshark:

• Sudden jump in request length (example: from 300 bytes to 3,000+)
• Multiple requests in rapid sequence within 1–3 seconds
• Server response that changes class (200 → 500, or 403 → 200)

Humor, because you’ve earned it: The exploit often arrives dressed as “just another GET.” Like a raccoon wearing a tie.

Decision card: “Is this exploit delivery or just web noise?”

If your delivery “moment” doesn’t match what you expected, it often helps to anchor back to fundamentals for web behavior (requests, responses, error modes) before you blame your exploit: web exploitation essentials.

Packet 5: the first shell handshake

Packet 5 is the moment your lab stops being “web traffic” and becomes “control.” A first shell usually creates a new TCP session that looks different from browsing.

What it often looks like

• Target → attacker connection (reverse shell) on a listener port you chose
• Or attacker → target session that upgrades from “request/response” to “interactive”

The shocking part: it’s often not obvious. You might see a clean three-way handshake and then… tiny packets. Little keystroke-sized frames. That’s your proof.

Two easy tells:

• Direction shift: the target initiates a connection it didn’t initiate before.
• Packet size pattern: many small payloads (think 40–200 bytes) rather than big HTML responses.

Show me the nerdy details

Method: follow the TCP stream for the suspected shell. Interactive shells often show frequent small segments and ACKs. If you see one large payload and then silence, you may have a one-shot command execution, not a stable shell. That’s still valuable—just a different kind of “after.”

Packet 6: post-shell noise that proves control

A shell is not a trophy. It’s a question: “Do I actually have control?” Packet 6 is the proof you can answer with confidence.

What “real control” produces on the wire

• Repeated small packets consistent with commands and output
• Occasional larger bursts when you run directory listings or read files
• New connections when your tooling changes (e.g., you pivot to another port or start file transfer)

Two numbers to anchor your sanity:

• Within 60 seconds of a shell, you should see multiple back-and-forth payload packets.
• If you see only a single exchange and then nothing for 20+ seconds, treat it as unstable until proven otherwise.

Practical tip: In training labs, the “after” traffic often includes a quick whoami / id style check. Even if you can’t read the plaintext, the interactive pattern still shows.

Packet 7: the credential or data move you’ll miss

Here’s the uncomfortable truth: the biggest learning moment often happens right after your first shell—when you do something tiny that would matter a lot in the real world.

What Packet 7 might be

• A file transfer attempt (HTTP, FTP, SMB, or a raw TCP push)
• A new outbound connection as you test reachability (“can I talk to X?”)
• A plaintext credential event in a legacy protocol (rare, but labs love teaching moments)

Why it matters: This is where traffic analysis becomes career-relevant. In actual environments, post-exploitation traffic gets tied to incident response timelines, contractual scope, and sometimes malpractice coverage questions for consultants. In a lab, it’s your chance to practice clean, explainable behavior.

Two numbers to keep you honest:

• Limit yourself to 1 purposeful post-shell network action at a time.
• Capture 2 minutes of “after” traffic even if you feel done—Packet 7 often happens late.

If “after” starts expanding into lateral moves, make sure you’re not skipping the boring-but-decisive foundations (routing, name resolution, segmentation). A quick reset here pays forever: networking 101 for hackers.

Money block: time cost and risk controls (2025)

If you’re time-poor, the real cost of messy traffic analysis isn’t pride. It’s hours. And if you ever move from lab to paid work, it can become money, contracts, and liability.

Mini calculator: “What did this capture cost me?”

Eligibility checklist: “Is your traffic analysis ready for paid work?”

Fee/rate table: “Common scope controls that protect your time”

Control (2025)	Typical time impact	Notes
Written scope + allowed targets	Saves 30–90 min per engagement	Prevents “just one more host” drift.
Logging/packet capture plan	Saves 20–60 min in reporting	Makes findings explainable, not mystical.
Professional liability / cyber insurance quotes	Protects downside (varies)	Not advice—just a reminder that real work adds risk context.

Neutral next step: Save this table and confirm the current requirements with your client, employer, or program policy before you test anything outside a lab. If you want a reporting anchor that keeps your “proof” readable under pressure, pair this with a clean structure like a professional OSCP report template and a tight note-taking system for pentesting.

Filters that turn chaos into a 90-second answer

You don’t need 200 filters. You need a small set you can reuse under stress.

Core filters (keep them on a sticky note)

• Only traffic between attacker and target: ip.addr == ATTACKER_IP && ip.addr == TARGET_IP
• HTTP focus: http
• TCP handshake focus: tcp.flags.syn == 1 || tcp.flags.reset == 1
• Suspected shell port: tcp.port == 4444 (or your chosen listener port)
• ARP sanity: arp

Operator rhythm (fast):

• 2 minutes: confirm ARP/ICMP exists
• 5 minutes: isolate attacker↔target traffic
• 5 minutes: identify the “flip” stream
• 3 minutes: write a tiny timeline

Quiet flex that pays: If you can tell the story in 8 lines, your report writing time drops hard.

Short story: the shell that wasn’t

Short Story: I’ve watched this happen to more people than I can count in training rooms: the terminal says “connected,” everyone smiles, and then the shell dies like a candle in a draft. The instinct is to rerun the exploit five times. But the wire tells a calmer story. The target connects back once, sends a small burst, then stops—no sustained back-and-forth. That’s not “no shell.”

That’s “one-shot execution” or “shell without stable TTY,” and it changes what you do next. Instead of hammering the exploit, you validate the listener, confirm the callback port, and adjust for interactivity. The moment you learn to read that difference, you stop chasing luck and start building repeatability. And repeatability is what turns a lab win into operator skill.

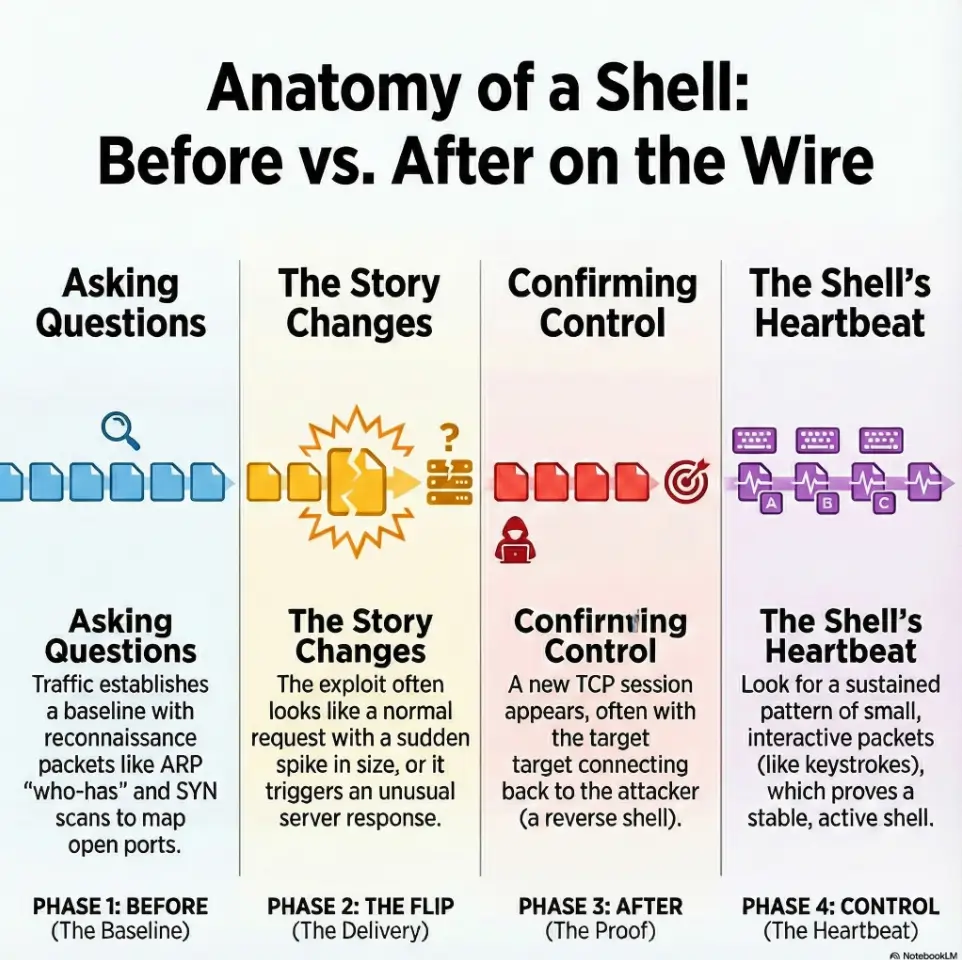

Infographic: wire timeline before/after shell

This is a simple visual you can keep beside Wireshark. It’s not art. It’s a map.

FAQ

How do I know I captured the right interface in Wireshark?

Generate a tiny known event first: one ping or one TCP connect. If you don’t see ARP/ICMP or the handshake in 10–20 seconds, you’re likely on the wrong interface or your VM NIC mode isn’t what you think. 60-second action: ping once, then filter icmp || arp and verify you see the exchange.

What’s the fastest way to find the “first shell” stream?

Look for the stream where direction changes or where traffic becomes many small payload packets. Often it’s a new TCP stream on your listener port. 60-second action: filter by your listener port (example tcp.port == 4444), then Follow → TCP Stream.

My exploit “worked,” but I can’t read anything in the TCP stream. Why?

If the payload is encrypted, binary, or poorly framed, it may not render as readable text. That doesn’t mean it’s useless. Packet sizes, timing, and direction still prove control changes. 60-second action: check packet length patterns and whether there’s sustained back-and-forth for at least 60 seconds.

How much “after” traffic should I record for a lab run?

Record at least 2 minutes after you believe you got control. The interesting packet often comes late—your first data move, your first outbound test, or your first mistake. 60-second action: set a timer for 2 minutes after shell and keep capturing, even if you’re tempted to stop.

Is it safe/legal to do this kind of traffic analysis in South Korea?

In South Korea (and most places), the safe path is clear: do this only in your own lab environment (VulnHub-style targets, local VMs, isolated networks) or with explicit written permission for any real system. The moment you leave “your lab,” you enter policy, contract, and legal territory. 60-second action: write down your lab subnet and confirm your target IP is inside it before you run scans.

What’s one mistake that makes “before/after” comparisons worthless?

Mixing traffic from the wrong network segment: capturing your home LAN while thinking you’re capturing host-only traffic, or scanning the wrong IP due to DHCP changes. 60-second action: filter by ip.addr for attacker and target; if you see unrelated public IPs, stop and fix the capture scope.

Wrap-up: your 15-minute next step

Remember the hook: the capture that looked like a victory parade—until it couldn’t tell a story. That’s the whole point of traffic analysis before/after exploitation in Kioptrix with Wireshark: not to collect packets, but to collect proof.

Your next step in 15 minutes:

• 3 minutes: validate capture point (ARP/ICMP exists)
• 5 minutes: baseline scan + one banner capture
• 5 minutes: run the exploit and mark Packet 4 + Packet 5 streams
• 2 minutes: write a 5-line timeline: baseline → delivery → shell → control → post action
